Convenient and efficient wall-mounted systems for veterinary dentistry.

Dentalaire’s wall-mounted systems provide flexibility and efficiency for veterinary practices in need of space-saving solutions. Dentalaire offers many wall-mounted systems to choose from, and all can be custom-designed to meet the exact specifications of your veterinary practice.

Dentalaire Diplomate

  • Available in three options: whip style, standard style and asepsis style
  • 3HP automatic top post mount
  • Lighted high-speed handpiece, slow-speed handpiece, piezo scaler
  • Side-mounted control adjustments
  • Three-way syringe with quick-change Autoclavable tip
  • Master ON/OFF toggle with indicator
  • Pressure adjustment for each handpiece
  • Asepsis flex arm system with pneumatic brake, 52: reach, 27: vertical travel
  • Soft touch variable speed foot control
  • Vet Pak (start up supplies)
  • 7’ umbilical tubing
  • Utility center assembly 14” x 9” x 5 3/8”
  • Wall mount plate included
  • Can be used with hard plumbed water system (filtration needed)
  • Optional separate water bottle option available – A110-052
  • Nitrogen or compressor air driven
  • Professional installation recommended (contact Dentalaire)
  • Optional 1.5 DA2 Oil Free Compressor (multiple stations) or DA1/34/57 (single station)
  • Two year warranty

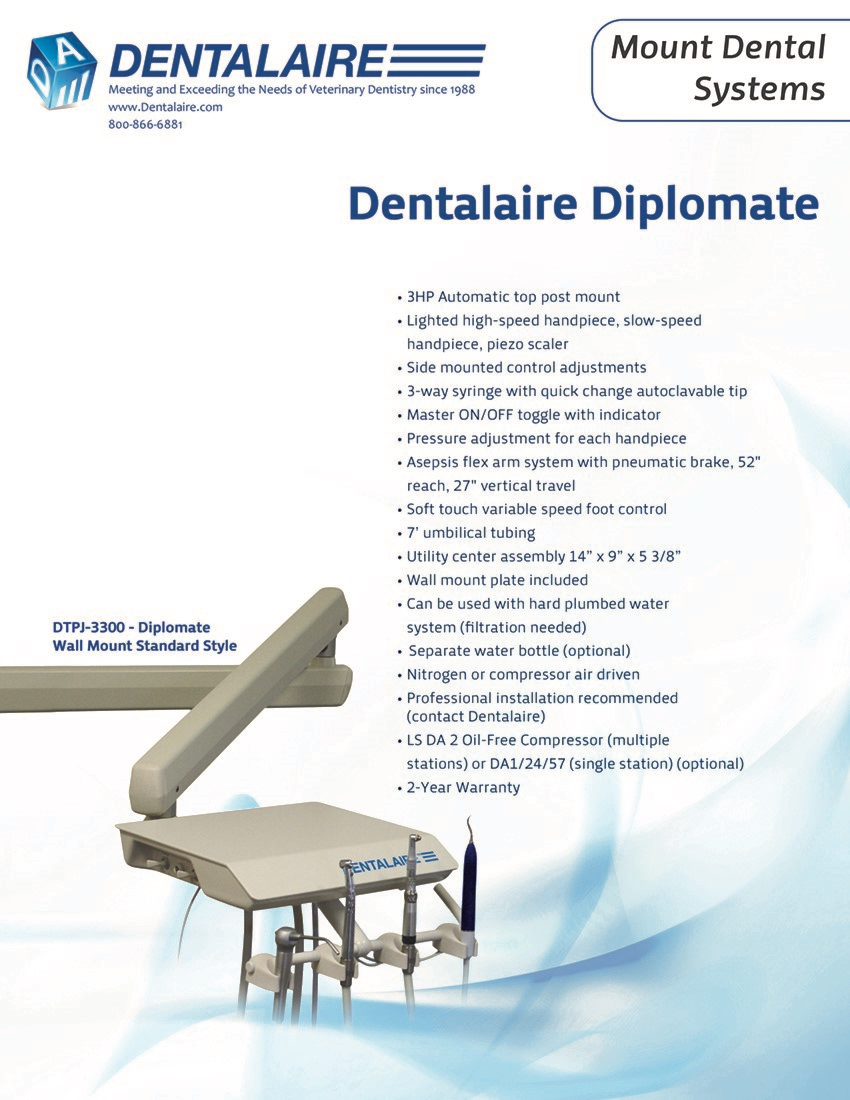

Download Product Brochure

DTPJ-3300 – Diplomate Wall Mount Standard Style

DTPJ-3300 – Diplomate Wall Mount Standard Style

Other wall-mounted systems available:

  • DTP00600 – Wall Mounted Two Handpiece System without compressor
  • DTP00601 – Wall Mounted Two Handpiece System with compressor
  • DTP00607 – Table Mounted Two Handpiece System without compressor
  • DTP00608 – Table Mounted Two Handpiece System with compressor

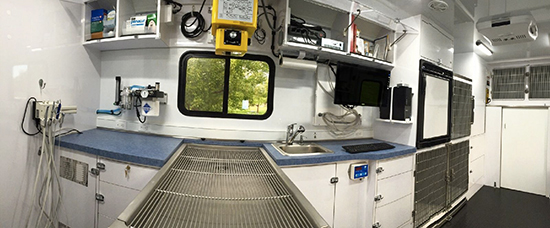

Perfect for Mobile Clinics too! Call us for details!

DTP00603 (includes oil free compressor)
